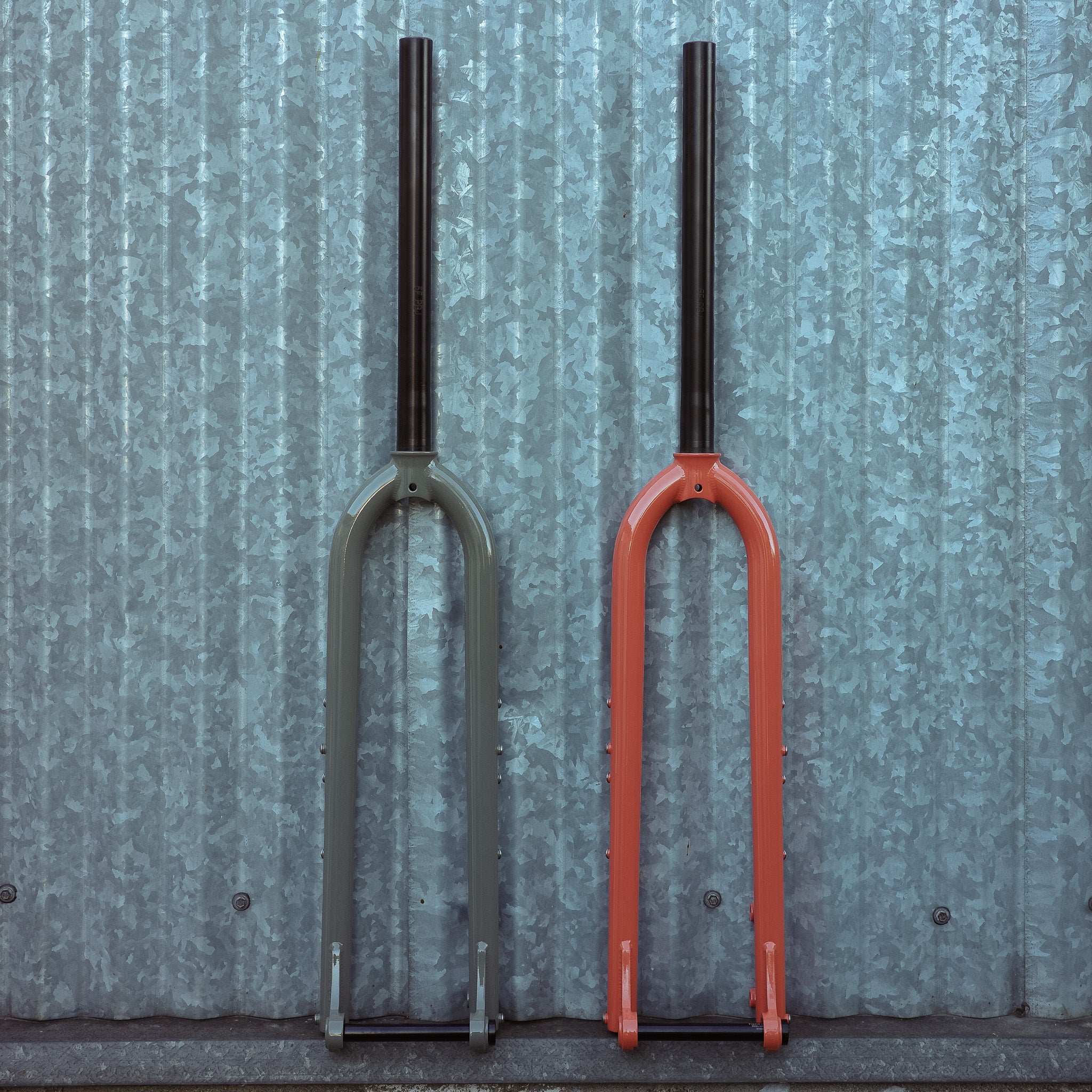

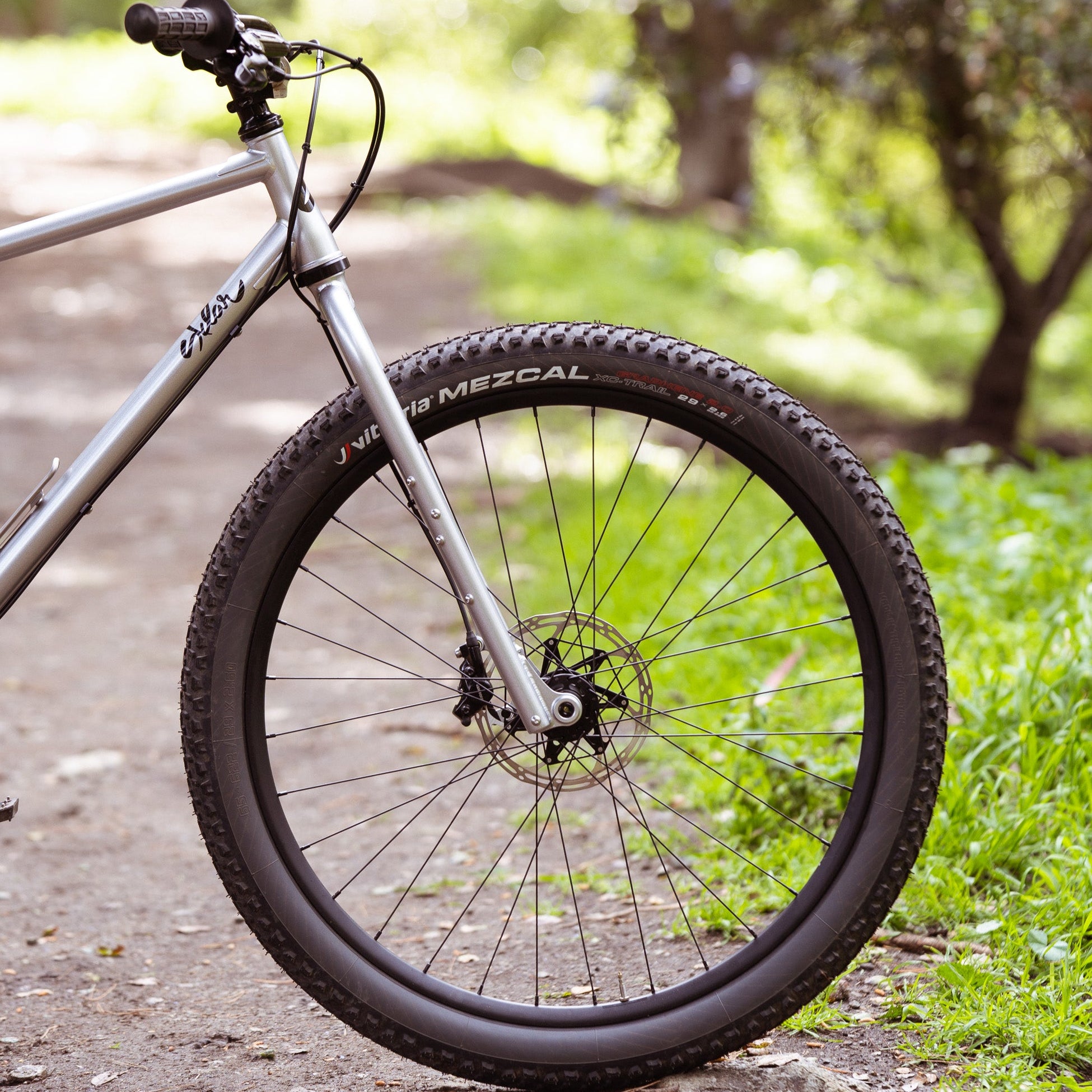

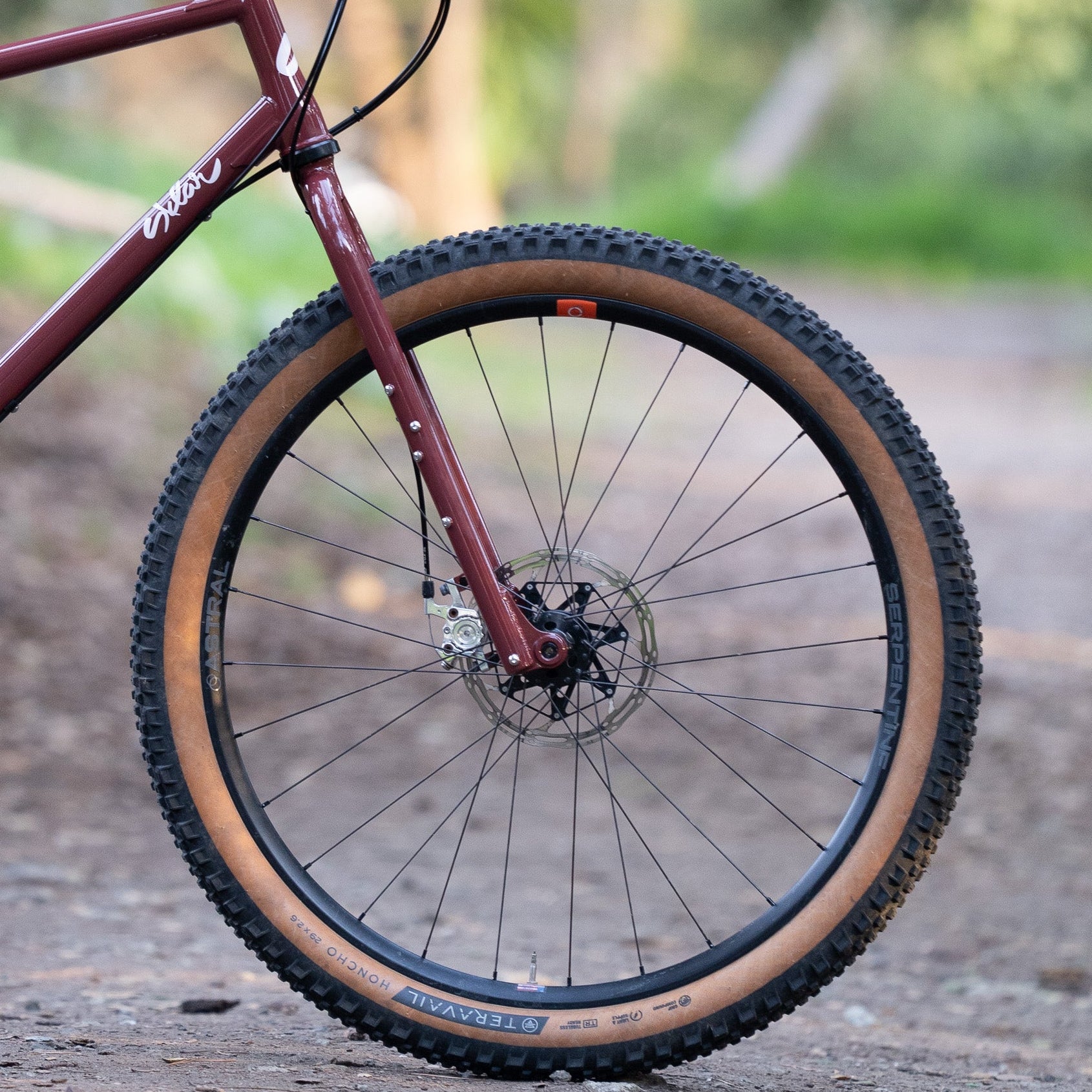

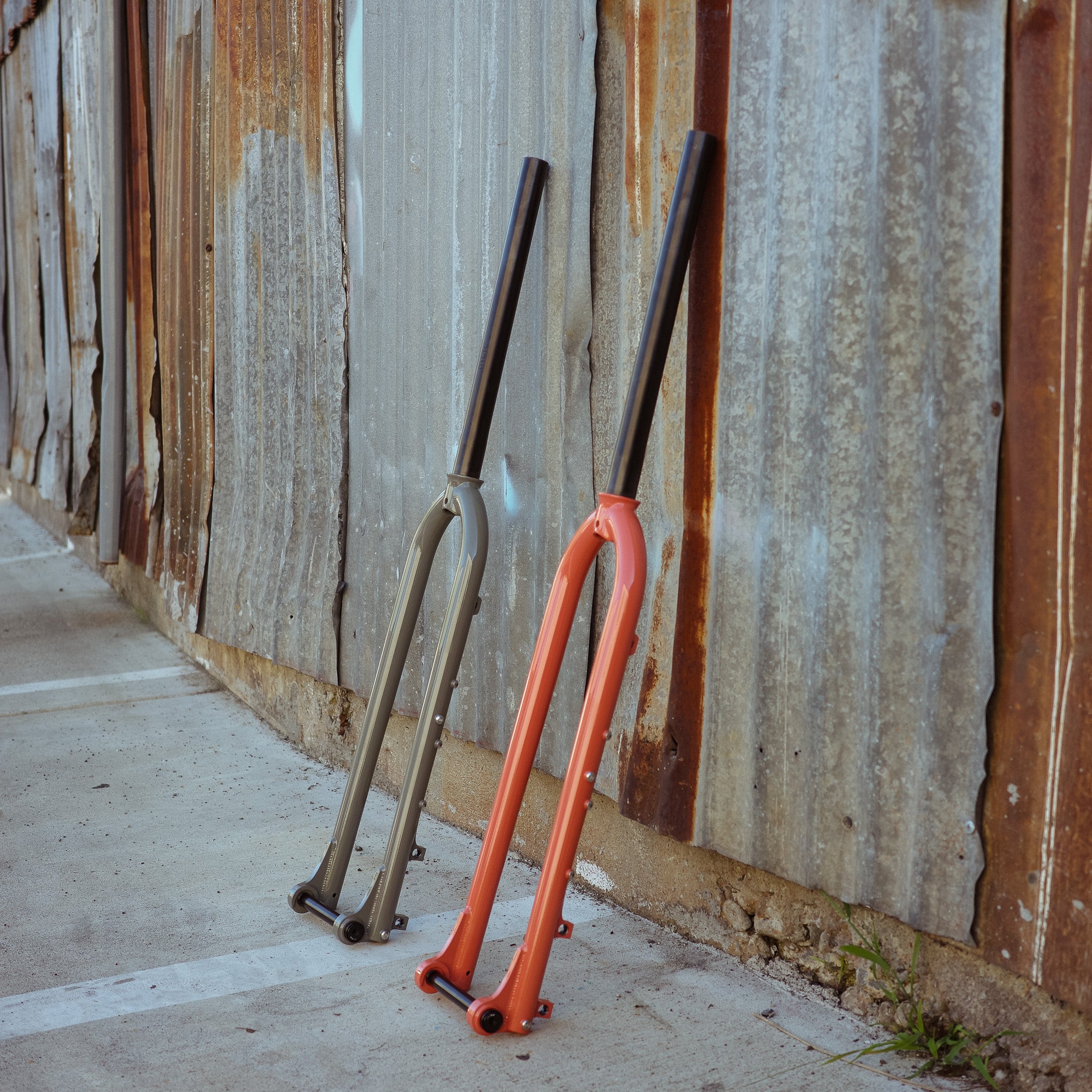

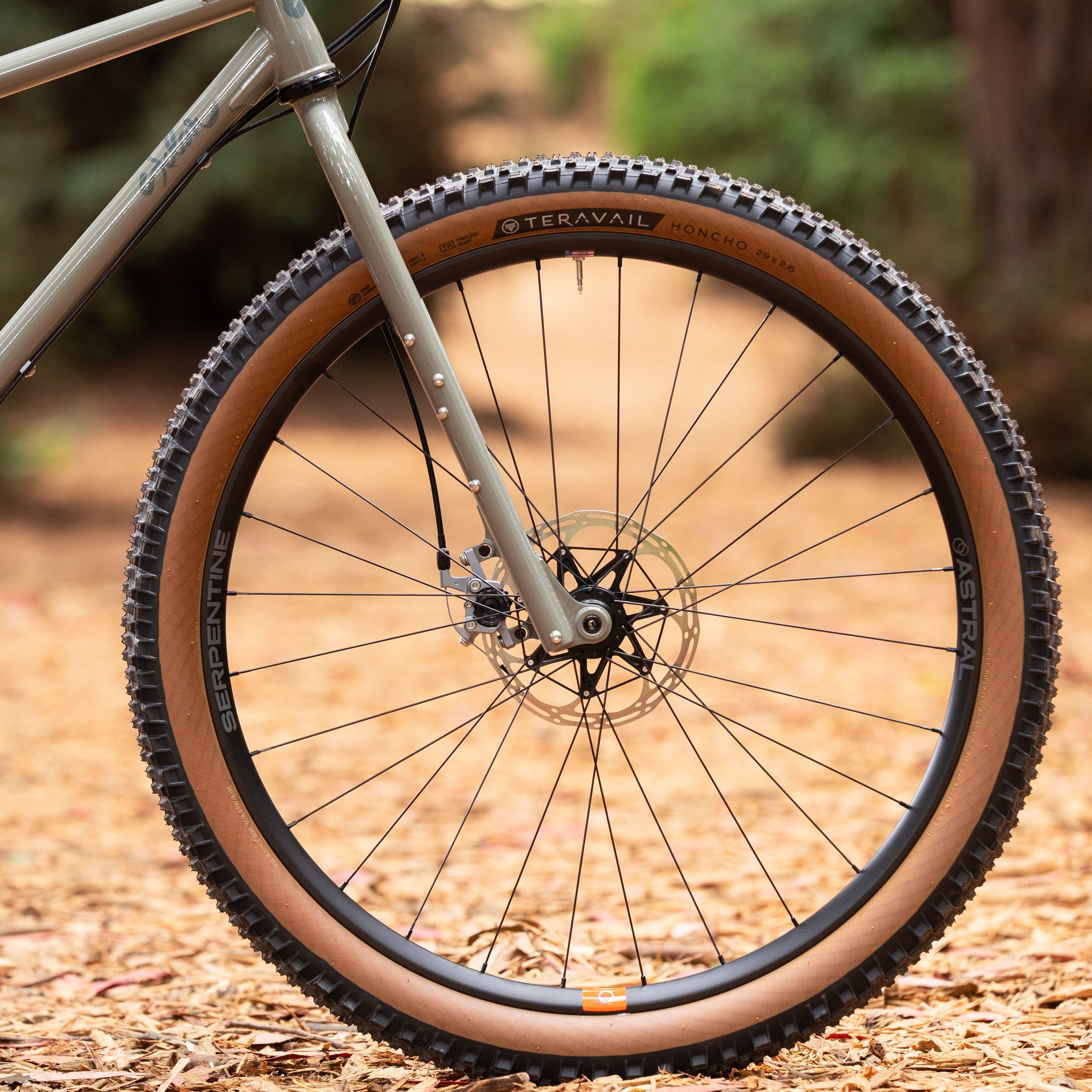

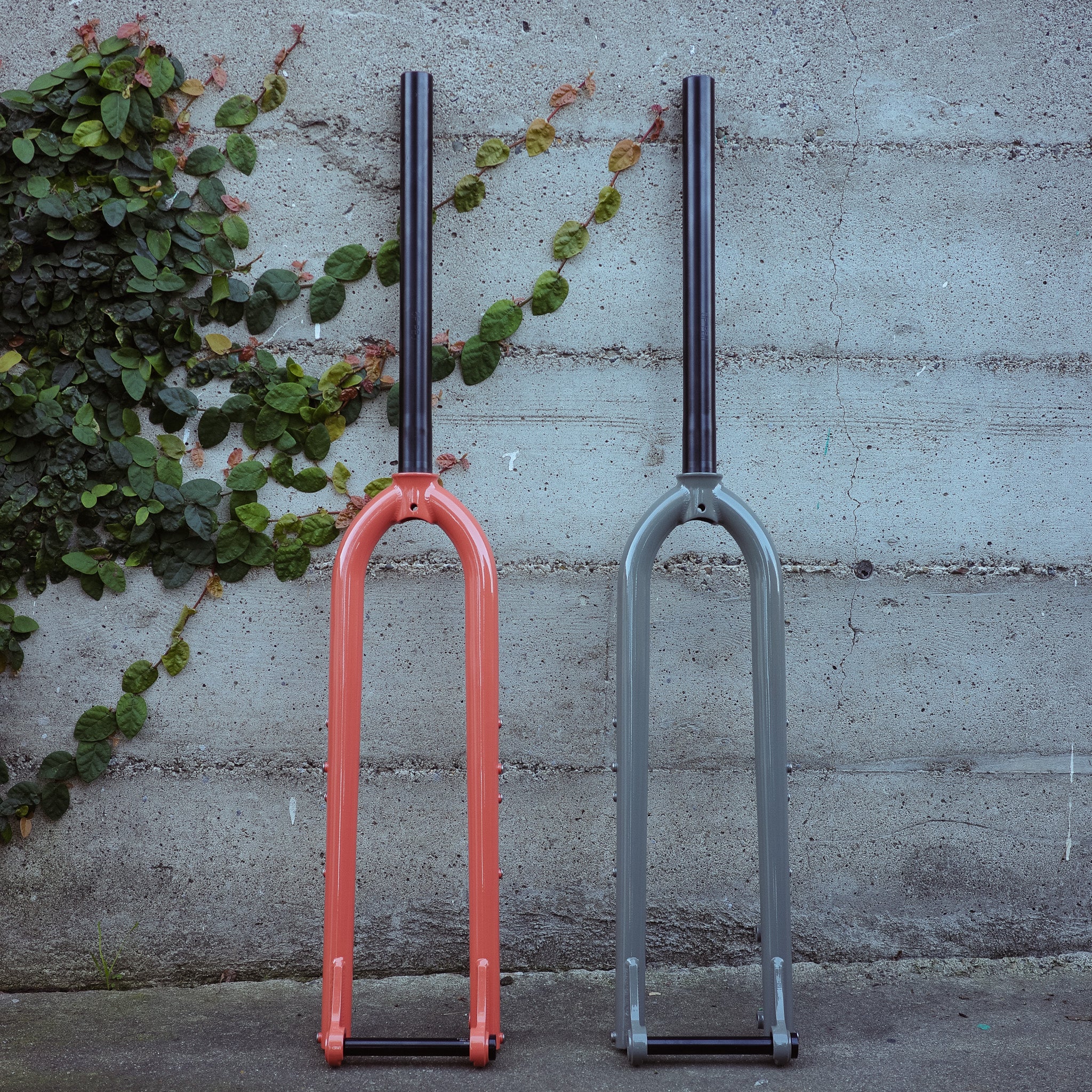

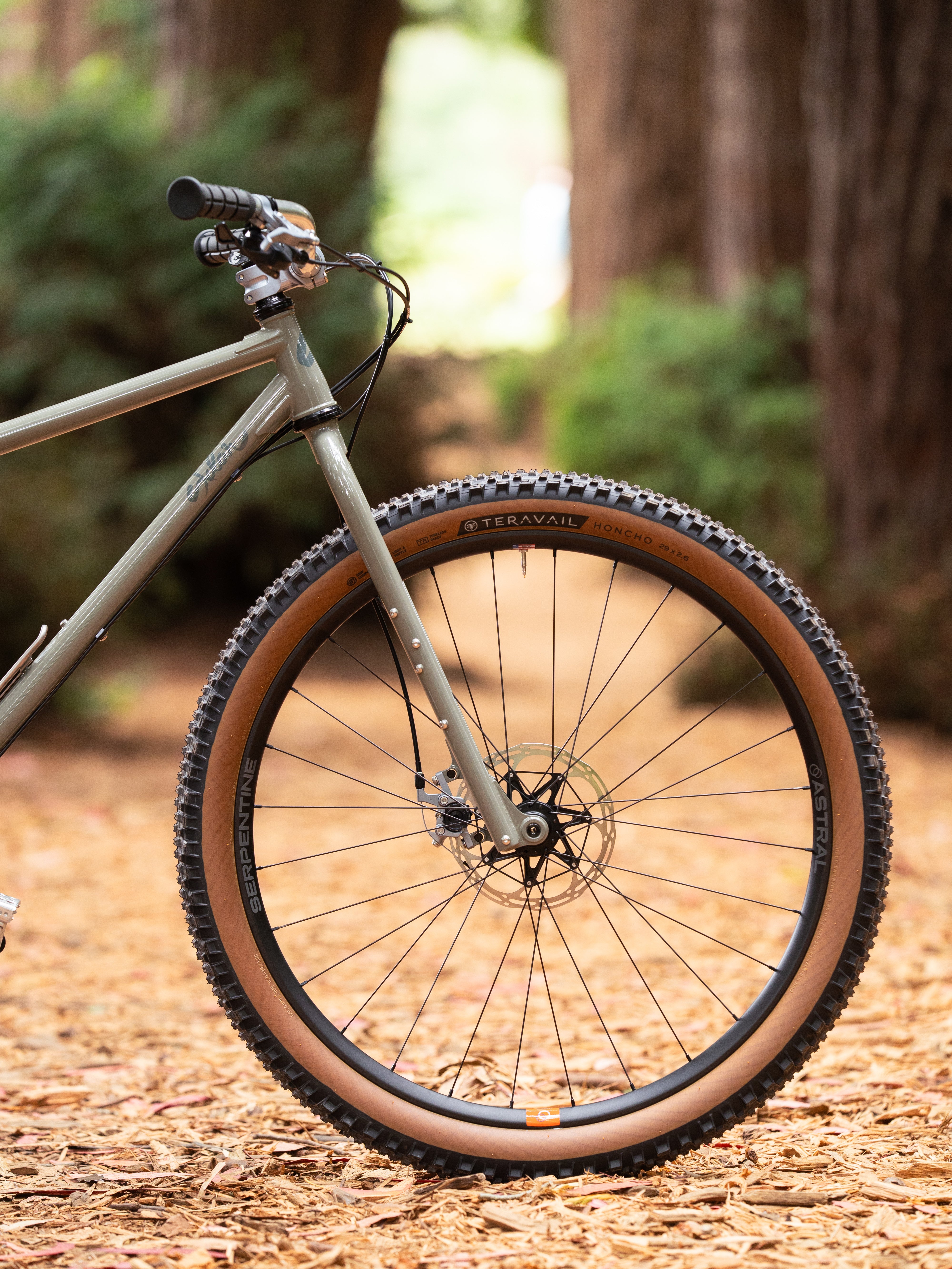

PBJ Fork - Steel suspension corrected 29er fork
A frame is nothing without a nice fork and we did not skimp when it came to designing a fork for our PBJ frameset. This lightweight but sturdy fork features custom drawn bent and formed legs to strike a balance between flex and sturdiness. A fork that will absorb chatter to provide better comfort and traction while still being predictable in its handling and also able to be loaded up for cargo when that is what you want.

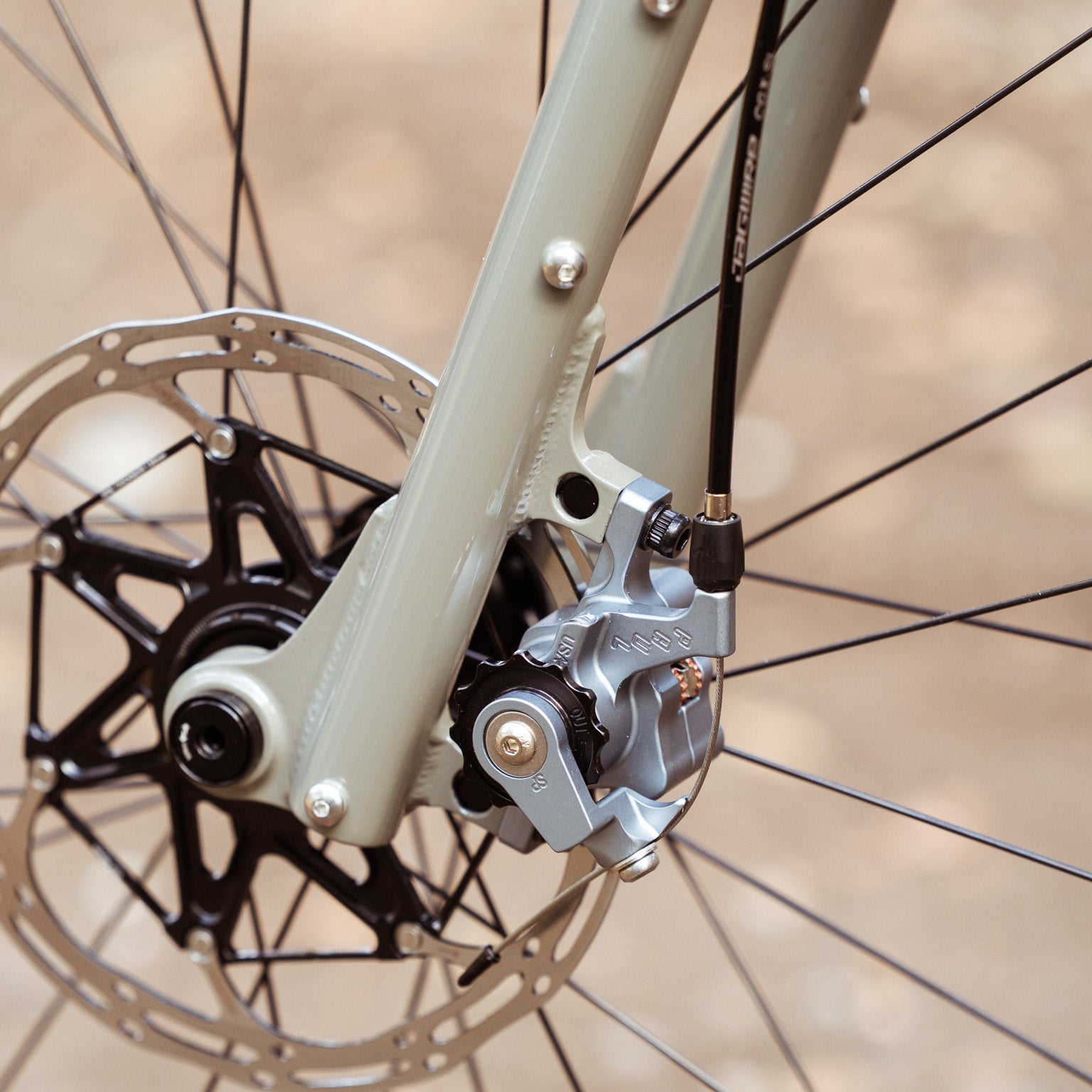

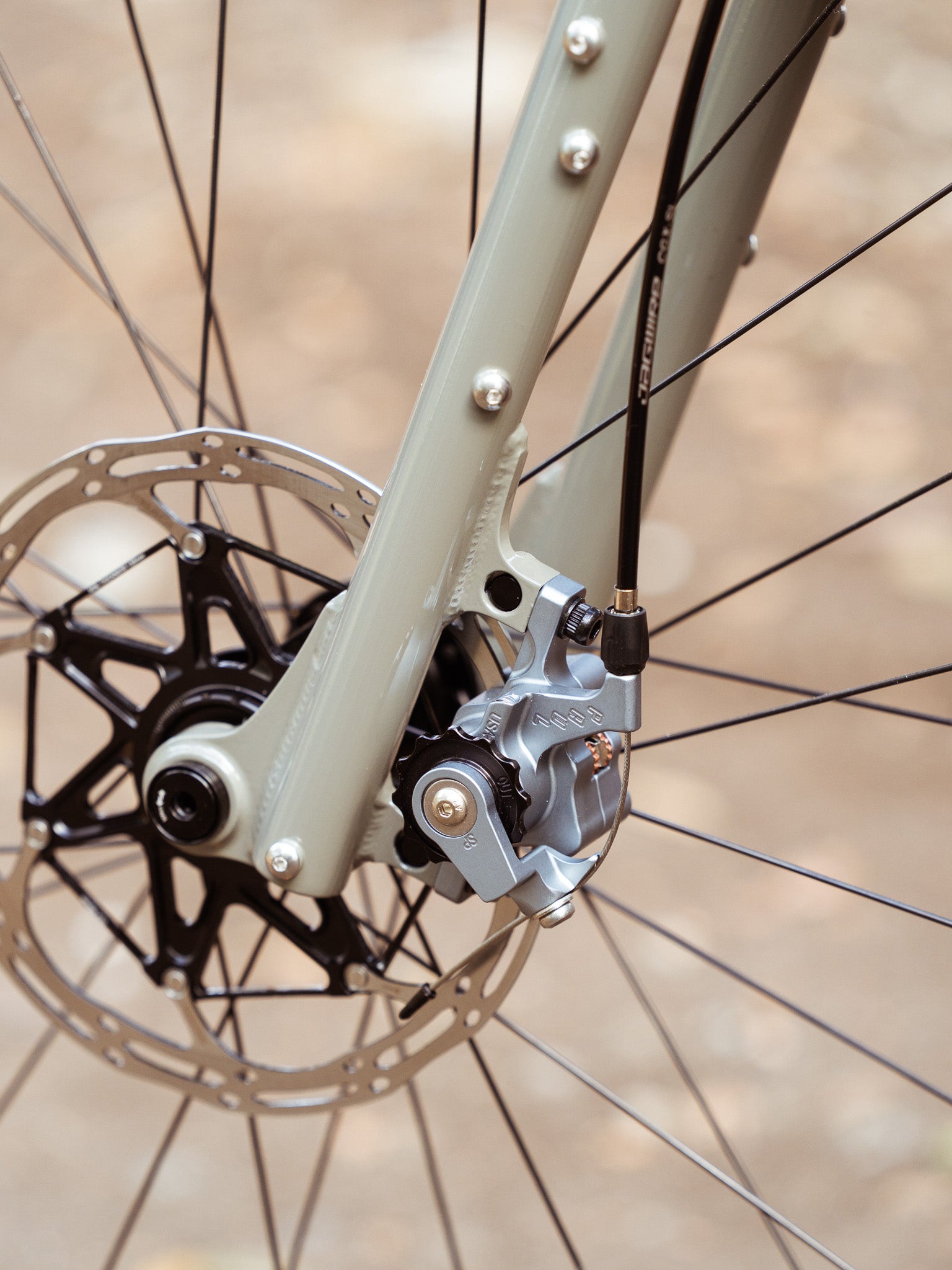

The PBJ fork features really cool investment cast dropouts with some BMX-y style and our unique 180mm post mount brake mounts that set you up with the right size rotor with no adaptors.
The PBJ fork uses a straight 1-1/8" steer tube which makes it lighter and not overly stiff. You can use the fork with either a straight head tube frame or a tapered head tube frame, just get an adaptor baseplate for the 30mm race and you are good to go.
| Spec | Detail |
|---|---|
| Axle to Crown | 485 mm |
| Offset | 52mm |
| Steer Tube Length | 350 mm |
| Tire Clearance | 29 x 2.8", 27.5 x 2.8", 32 x 2.4" |
| Steer Tube | 1-1/8″ straight (30mm race) |
| Brake Mount | 180mm Post mount |
| Spacing | 15 x 110 mm Boost |
| Mounts | 3-pack and fender mount on legs, Rack mounts at dropout and mid-blade, thru-hole at crown |
| Cable Routing | External brake, Internal dynamo wire routing |
| Axle Spec | 134mm Length, M15x1.5, 14mm thread length (Included) |
| Weight | 1570 g (uncut) |
